Split CSS by breakpoints

To add to our performance objectives and complement our mobile-first approach, we split our SCSS by breakpoints so only the necessary SCSS loads in each one of them.

This means that our mobile version will only load the styles it needs for mobile, which would be the base stylesheet. After that, each breakpoint would load one more stylesheet with the media queries pertaining to that breakpoint and all the ones below it, so desktop (or wide if present) would load all files.

Steps to split a project’s SCSS - WordPress version

Installations

You will need to install the following packages if not already present:

npm i postcss-scss postcss-safe-parser

1. Create your splitting utility

Create a JavaScript file inside the config folder. The template is as follows:

// Used in: node split-by-breakpoints.js input.css dist/
import fs from "fs";
import path from "path";
import postcss from "postcss";
import safeParser from "postcss-safe-parser";

const [, , outDir = "dist"] = process.argv;

// search the file in the dist folder
const distFiles = fs.readdirSync("dist");
const cssFile = distFiles.find((file) => file.startsWith("ProjectStyles.") && file.endsWith(".css"));

if (!cssFile) {
    console.error("File not found in dist folder");
    process.exit(1);
}

const inputPath = path.join("dist", cssFile);

const css = fs.readFileSync(inputPath, "utf8");
const root = postcss.parse(css, { parser: safeParser });

// the breakpoints we want
const BP = {
    desktop: 1700,
    laptop: 1570,
    tabletl: 1300,
    tabletm: 1024,
    tablets: 810,
    mobile: 580,
};

// pre-create roots even though they might be empty
const groups = {
    base: postcss.root(),
    desktop: postcss.root(),
    laptop: postcss.root(),
    tabletl: postcss.root(),
    tabletm: postcss.root(),
    tablets: postcss.root(),
    mobile: postcss.root(),
};

const normalize = (s = "") => s.toLowerCase().replace(/\s+/g, " ").trim();

// detects in a @media coincides with a max-width
const matchMaxWidth = (params, px) => {
    const p = normalize(params);
    return p.includes(`(max-width: ${px}px)`);
};

// assigns @media to the correct group if it matches an exact breakpoint
// returns true if processed, false if it does not coincide with any breakpoints
const routeAtRule = (atrule) => {
    const params = normalize(atrule.params || "");

    if (matchMaxWidth(params, BP.desktop)) {
        groups.desktop.append(atrule.clone());
        return true;
    }
    if (matchMaxWidth(params, BP.laptop)) {
        groups.laptop.append(atrule.clone());
        return true;
    }
    if (matchMaxWidth(params, BP.tabletl)) {
        groups.tabletl.append(atrule.clone());
        return true;
    }
    if (matchMaxWidth(params, BP.tabletm)) {
        groups.tabletm.append(atrule.clone());
        return true;
    }
    if (matchMaxWidth(params, BP.tablets)) {
        groups.tablets.append(atrule.clone());
        return true;
    }
    if (matchMaxWidth(params, BP.mobile)) {
        groups.mobile.append(atrule.clone());
        return true;
    }

    // No coincide con ningún breakpoint
    return false;
};

// go over the root
root.nodes.forEach((node) => {
    if (node.type === "atrule" && node.name === "media") {
        // media that doesn't match a breakpoint → base
        if (!routeAtRule(node)) {
            groups.base.append(node.clone());
        }
    } else {
        groups.base.append(node.clone());
    }
});

// exit
fs.mkdirSync(outDir, { recursive: true });

// write files
const hash = path.basename(inputPath, ".css").split(".")[1];

function write(name, ast) {
    const outPath = path.join(outDir, `${name}.${hash}.css`);
    fs.writeFileSync(outPath, ast.toResult().css, "utf8");
    console.log("↳ created:", path.relative(process.cwd(), outPath));
}

Object.entries(groups).forEach(([name, ast]) => write(name, ast));

console.log(":white_check_mark: Split OK at:", path.relative(process.cwd(), outDir));

console.log(`OK → ${path.resolve(outDir)}`);

We would modify only these two objects to add / remove breakpoints or change their sizings.

// the breakpoints we want
const BP = {
    desktop: 1700,
    laptop: 1570,
    tabletl: 1300,
    tabletm: 1024,
    tablets: 810,
    mobile: 580,
};

// pre-create roots even though they might be empty
const groups = {
    base: postcss.root(),
    desktop: postcss.root(),
    laptop: postcss.root(),
    tabletl: postcss.root(),
    tabletm: postcss.root(),
    tablets: postcss.root(),
    mobile: postcss.root(),
};

The names of these and their sizes should always match the variables in the vars file of your styles:

// * breakpoints
$all: 0;
$desktop: 1700px;
$laptop: 1570px;
$tabletl: 1300px;
$tabletm: 1024px;
$tablets: 810px;
$mobile: 580px;

2. Create an activator

Create a script in package.json that will execute your file and add it to your build script:

{
  "name": "wp-vite-starter-2024",
  "version": "1.0.0",
  "description": "vite starter",
  "main": "index.js",
  "scripts": {
    "virtual": "cross-env NODE_ENV=virtual vite",
    "local": "NODE_ENV=local vite build",
    "build": "NODE_ENV=production vite build && npm run split",
    "split": "node config/split-css.mjs"
  },
  ...
}

These will execute the file and effectively split your SCSS in your build.

3. Add your new SCSS files to your enqueues

Now, instead of enqueuing only one styling file, you’ll need to include all the new css files that are going to be created in your build:

add_action( 'wp_enqueue_scripts', function() {

    if (defined('IS_VITE_DEVELOPMENT') && IS_VITE_DEVELOPMENT === true) {
        ...
    } else {
        ...

        wp_enqueue_style('project-build-base',  get_template_directory_uri() . '/dist/base.'.hash.'.css' );
        wp_enqueue_style('project-build-desktop', get_template_directory_uri() . '/dist/desktop.'.hash.'.css', [], null, '(max-width: 1700px)');
        wp_enqueue_style('project-build-laptop',  get_template_directory_uri() . '/dist/laptop.'.hash.'.css',  [], null, '(max-width: 1570px)');
        wp_enqueue_style('project-build-tabletl', get_template_directory_uri() . '/dist/tabletl.'.hash.'.css', [], null, '(max-width: 1300px)');
        wp_enqueue_style('project-build-tabletm', get_template_directory_uri() . '/dist/tabletm.'.hash.'.css', [], null, '(max-width: 1024px)');
        wp_enqueue_style('project-build-tablets', get_template_directory_uri() . '/dist/tablets.'.hash.'.css', [], null, '(max-width: 810px)');
        wp_enqueue_style('project-build-mobile',  get_template_directory_uri() . '/dist/mobile.'.hash.'.css', [], null, '(max-width: 580px)');

    }
});

Steps to split a project’s SCSS - Astro version

Installations

You will need to install the following packages if not already present:

npm i postcss-scss postcss-safe-parser

1. Add the `SplitByBreakpoints` utility

We need to create a folder at the root called optimization and create a file there called index.js. This would be the template of that file:

import fs from "fs";
import path from "path";
import { fileURLToPath } from "node:url";
import postcss from "postcss";
import safeParser from "postcss-safe-parser";

export function splitByBreakpoints() {
    // Mobile-first breakpoints using min-width
    const BP = {
        tablets: 580,
        tabletm: 810,
        tabletl: 1024,
        laptop: 1300,
        desktop: 1570,
        wide: 1700,
    };

    const CSS_NAME = /^style\.[^/\\]+\.css$/i;

    function findStyleCss(startDir) {
        const matches = [];
        const stack = [startDir];
        while (stack.length) {
            const current = stack.pop();
            const entries = fs.readdirSync(current, { withFileTypes: true });
            for (const e of entries) {
                const full = path.join(current, e.name);
                if (e.isDirectory()) stack.push(full);
                else if (CSS_NAME.test(e.name)) matches.push(full);
            }
        }
        const astro = matches.find((p) => p.split(path.sep).includes("_astro"));
        return astro || (matches.length ? matches[0] : null);
    }

    // Mobile-first: match exact (min-width: NNNpx)
    const EXACT_BP_RE = /^\s*(?:only\s+)?(?:screen|all)?(?:\s+and\s+)?\(\s*min-width\s*:\s*(\d+)\s*px\s*\)\s*$/i;

    function getExactMinWidth(params) {
        const match = params.match(EXACT_BP_RE);
        if (match) return parseInt(match[1], 10);
        return null;
    }

    return {
        name: "post-build-split-by-breakpoints",
        hooks: {
            "astro:build:done": async ({ dir }) => {
                const distPath = fileURLToPath(dir);
                const target = findStyleCss(distPath);

                if (!target) {
                    console.error(":x: No se encontró style.{hash}.css en dist.");
                    return;
                }

                const targetDir = path.dirname(target);
                const fileName = path.basename(target);
                const match = fileName.match(/^style\.([^.]+)\.css$/);
                const hash = match ? match[1] : "nohash";

                const css = fs.readFileSync(target, "utf8");
                const root = postcss.parse(css, { parser: safeParser });

                // Mobile-first: base contains mobile styles (no media query)
                const groups = {
                    base: postcss.root(),
                    tablets: postcss.root(),
                    tabletm: postcss.root(),
                    tabletl: postcss.root(),
                    laptop: postcss.root(),
                    desktop: postcss.root(),
                    wide: postcss.root(),
                };

                function routeNode(node) {
                    if (node.type === "atrule" && node.name === "media") {
                        const mw = getExactMinWidth(node.params || "");
                        const entry = Object.entries(BP).find(([_, val]) => val === mw);
                        if (entry) {
                            const [key] = entry;
                            groups[key].append(node.clone());
                            return;
                        }
                        // media that doesn't match a breakpoint → base
                        groups.base.append(node.clone());
                        return;
                    }

                    // any other node that's not @media → base (mobile styles)
                    groups.base.append(node.clone());
                }

                root.nodes.forEach(routeNode);

                function write(name, ast) {
                    const outPath = path.join(targetDir, `${name}.${hash}.css`);
                    fs.writeFileSync(outPath, ast.toResult().css, "utf8");
                }

                Object.entries(groups).forEach(([name, ast]) => write(name, ast));
            },
        },
    };
}

And the editable parts would be:

const BP = {
    tablets: 580,
    tabletm: 810,
    tabletl: 1024,
    laptop: 1300,
    desktop: 1570,
    wide: 1700,
};

const groups = {
    base: postcss.root(),
    tablets: postcss.root(),
    tabletm: postcss.root(),
    tabletl: postcss.root(),
    laptop: postcss.root(),
    desktop: postcss.root(),
    wide: postcss.root(),
};

We would need to edit those in case we wanted to change the widths of the breakpoints or add / remove one of them.

The names of these and their sizes should always match the variables in the vars file of your styles:

// * breakpoints
$all: 0;
$tablets: 580px;
$tabletm: 810px;
$tabletl: 1024px;
$laptop: 1300px;
$desktop: 1570px;
$wide: 1700px;

2. Add this utility to your `astro.config.js`

export default defineConfig({
    ...
    integrations: [splitByBreakpoints()],
});

3. Create a `Styles.astro` component

This component will hold all the CSS routes to add to our head.

---
import stylesUrl from "@styles/style.scss?url";

let splitCss = null;
if (import.meta.env.PROD) {
  const m = stylesUrl.match(/style\.([^.]+)\.css$/);
  const hash = m ? m[1] : null;
  const baseDir = stylesUrl.replace(/style\.[^.]+\.css$/, "");
  if (hash) {
    // Mobile-first: base contains mobile styles, others are progressively larger
    splitCss = {
      base:    `${baseDir}base.${hash}.css`,
      tablets: `${baseDir}tablets.${hash}.css`,
      tabletm: `${baseDir}tabletm.${hash}.css`,
      tabletl: `${baseDir}tabletl.${hash}.css`,
      laptop:  `${baseDir}laptop.${hash}.css`,
      desktop: `${baseDir}desktop.${hash}.css`,
      wide: `${baseDir}wide.${hash}.css`,
    };
  }
}
---

{!import.meta.env.PROD && <link id="andres" rel="stylesheet" href={stylesUrl} />}

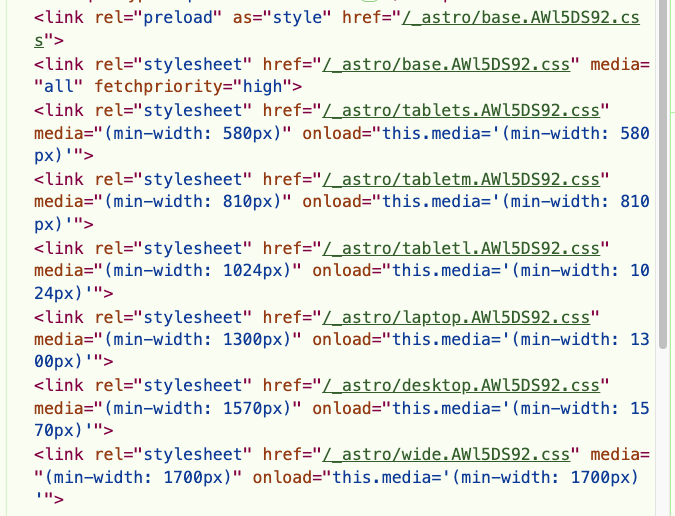

{import.meta.env.PROD && splitCss && (
  <>
    {/* Base (mobile): blocking + high priority */}
    <link rel="preload" as="style" href={splitCss.base} />
    <link
      rel="stylesheet"
      href={splitCss.base}
      media="all"
      fetchpriority="high"
    />

    {/* Mobile-first: progressively load larger breakpoints using min-width */}
    <link
      rel="stylesheet"
      href={splitCss.tablets}
      media="print"
      onload="this.media='(min-width: 580px)'"
    />
    <link
      rel="stylesheet"
      href={splitCss.tabletm}
      media="print"
      onload="this.media='(min-width: 810px)'"
    />
    <link
      rel="stylesheet"
      href={splitCss.tabletl}
      media="print"
      onload="this.media='(min-width: 1024px)'"
    />
    <link
      rel="stylesheet"
      href={splitCss.laptop}
      media="print"
      onload="this.media='(min-width: 1300px)'"
    />

    <link
      rel="stylesheet"
      href={splitCss.desktop}
      media="print"
      onload="this.media='(min-width: 1570px)'"
    />

    <link
      rel="stylesheet"
      href={splitCss.wide}
      media="print"
      onload="this.media='(min-width: 1700px)'"
    />

    <noscript>
      <link rel="stylesheet" href={splitCss.tablets} media="(min-width: 580px)" />
      <link rel="stylesheet" href={splitCss.tabletm} media="(min-width: 810px)" />
      <link rel="stylesheet" href={splitCss.tabletl} media="(min-width: 1024px)" />
      <link rel="stylesheet" href={splitCss.laptop}  media="(min-width: 1300px)" />
      <link rel="stylesheet" href={splitCss.desktop} media="(min-width: 1570px)" />
      <link rel="stylesheet" href={splitCss.wide} media="(min-width: 1700px)" />
    </noscript>
  </>
)}

We would need to edit this file to also match our breakpoints with those in vars.

Each breakpoint needs two link: one outside and another one inside the noscript tag.

We add the preload tag to our base scss, since it’s the biggest of all of them.

4. Import this component in `Layout.astro`

Finally, we’ll import the component inside our head in our Layout:

<html lang={language} dir="ltr">
    <head>
        <Fragment set:html={mergedSeo.headerScripts} />
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width" />
        <Seo payload={mergedSeo} />
        ...
        <Styles />
    </head>
    <body>...</body>
</html>

How to check it’s working

When you make a build or upload to your server, you should see all your css files instead of just one:

split styles in html head

Knowledge Check

Test your understanding of this section

Loading questions...

Split CSS by breakpoints

Steps to split a project’s SCSS - WordPress version

Installations

1. Create your splitting utility

2. Create an activator

3. Add your new SCSS files to your enqueues

Steps to split a project’s SCSS - Astro version

Installations

1. Add the SplitByBreakpoints utility

2. Add this utility to your astro.config.js

3. Create a Styles.astro component

4. Import this component in Layout.astro

How to check it’s working

Knowledge Check

1. Add the `SplitByBreakpoints` utility

2. Add this utility to your `astro.config.js`

3. Create a `Styles.astro` component

4. Import this component in `Layout.astro`
